AirProTech UVC-LED System Specifications

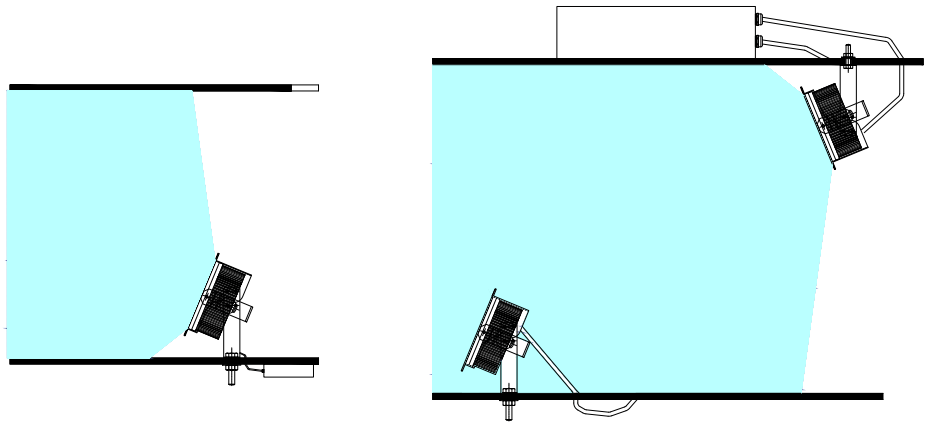

Duct sizes and number of fixtures
| WAVE LENGTH | 280nm |
| LED UV Power | 70 watts |
| Radian Flux | 2200mW |
| Input Voltage | 120-277,347v & 480v |
| Power Factor | 0.9 |
| Total Harmonic Distortion | < 10% |
| Frequency | 50/60 |
| Light Beam Angle | 130º |
| Operating Temp. Range | 40º C to 60ºC (-40ºF to 140ºF) |
| Application | Disinfectant & Sterilization |
| Electrical Certification | ETL |
| Connection Type | Quick connect |
| Surge Protection | 6KV/6KV |
| IP Rating | IP65 |
| Compliance | FDA |
Reliability
BlueMarble uses the best, most reliable and powerful LEDs in the AirProTech UVC-LED air duct fixtures. The solid-state fixtures are engineered to be environmentally friendly with “plug and play” 100% recyclable parts that can easily be refurbished. They are rugged, long-lasting and maintenance-free throughout their lifecycle. They are backed by a rigorous suite of environmental and mechanical stress tests, including mechanical shock, vibration, temperature cycling and humidity. The AirProTech UVC-LED fixtures are designed for use in the most demanding, high-power applications. The commercial AirProTech UVC-LED air duct fixtures provide 2200 mW of radiant flux at 280nm per 70-watt fixture — enough power to eradicate all indoor airborne pathogens including the COVID-19 virus, cold and flu virus, fungi, mold, allergens, bacteria, and more.
Thermal Management
Utilizing BlueMarble’s thermal management technology, the AirProTech UVC-LED air duct fixtures with extremely low thermal resistance minimize the temperature of the LEDs to ensure an exceptionally long life at peak performance throughout the fixture’s lifespan.
